Site: ‘Anatu

Island: ‘Eua


Fabrics:

None (0) Minor (1) Few (2) Common (3) Frequent (4) Major (5) Very Dominant (6)
0% 0-5% 5-15% 15-30 % 30-50% 50-70% 70-100%

Name Cal. QuartzFeldspar Pyroxene Amphibole Opaques OlivineBiotite Muscovite Epidote Garnet/ SpinelIg./Met. Rocks Sed. Rocks Grog Lithics/ Region
tpr437 0 3 6 4 4 2 0 0 0 0 0 3 0 0 microlitic, plutonite, vitric
Eua gabrroic 0 1 3 1 1 2 0 0 0 0 0 2 0 0 Tonga

Slides:

Slide Fabric Possible OriginCal. QuartzFeldspar Pyroxene Amphibole Opaques OlivineBiotite Muscovite Epidote Garnet/ Spinel Ig./Met. Rocks Sed. Rocks Grog Lithics
WD_72_17 tpr437 (Eua gabrroic) Eua 0 1 4 1 1 2 0 0 0 0 0 3 0 0 microlitic, plutonite, vitric
WD_72_18 tpr437 (Eua gabrroic) Eua 0 1 3 1 2 2 0 0 0 0 0 3 0 0 microlitic, plutonite, vitric
WD_72_19 tpr437 (Eua gabrroic) Eua 0 3 6 1 4 2 0 0 0 0 0 2 0 0 microlitic, plutonite, vitric

WD_72_17

Eua1 Eua1

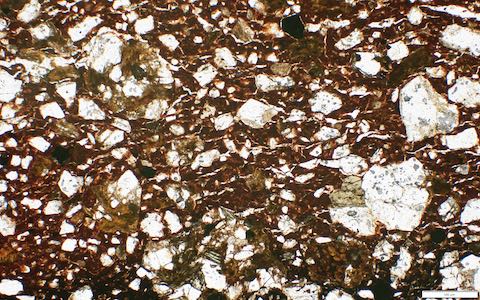

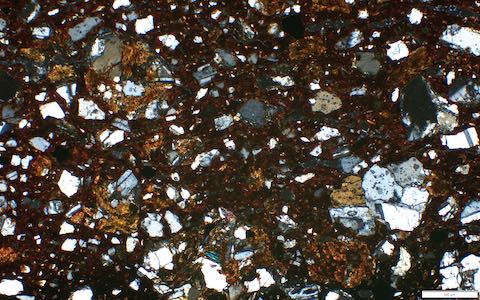

Sherd Eua1 from ‘Anatu (‘Eua). Slide WD_72_17 from Dickinson Collection, Bishop Museum. x4 Magnification PPL (left) XPL (right). Scale bar: 0.5mm. High resolution image or full slide in VIMIPO (user: Guest pwd: Guest). Imaged by K. Hardy and M. Leclerc, ANU.

Gabbro fabric.


WD_72_18

Eua2 Eua2

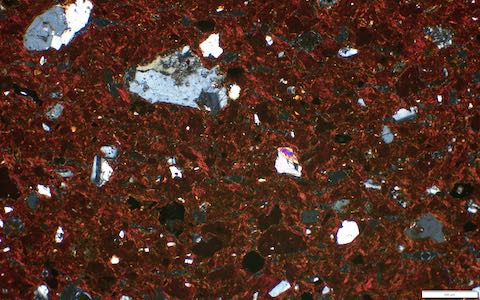

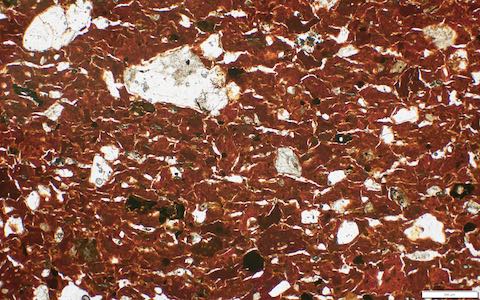

Sherd Eua2 from ‘Anatu (‘Eua). Slide WD_72_18 from Dickinson Collection, Bishop Museum. x4 Magnification PPL (left) XPL (right). Scale bar: 0.5mm. High resolution image in VIMIPO (user: Guest pwd: Guest). Imaged by K. Hardy and M. Leclerc, ANU.

Gabbro fragments.


WD_72_19

Eua3 Eua3

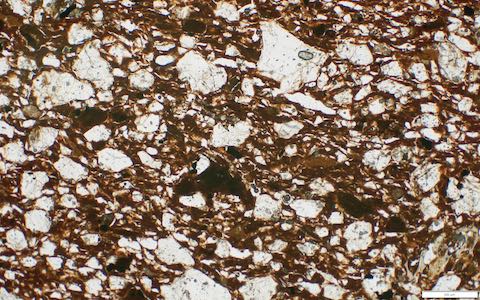

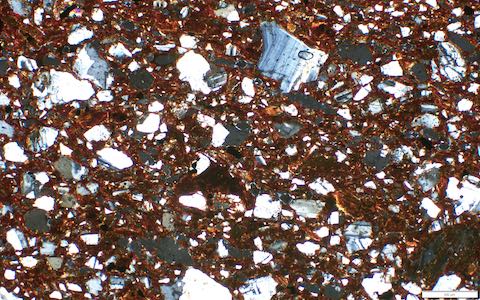

Sherd Eua3 from ‘Anatu (‘Eua). Slide WD_72_19 from Dickinson Collection, Bishop Museum. x4 Magnification PPL (left) XPL (right). Scale bar: 0.5mm. High resolution image in VIMIPO (user: Guest pwd: Guest). Imaged by K. Hardy and M. Leclerc, ANU.

Gabbro fragments.


References:

119 Eua, Tonga, 1995 (Dickinson, W.)
